Project Details

CHALLENGE:

The deck transformation and pergola installation presented multiple complexities, starting with the home’s high windows and low soffits, which left no room to mount the pergola to the roof. This meant that the louvers would not operate correctly to their full 175° range without custom engineering.

StruXure Denver designed the posts to fit under the soffits while ensuring the louvers could still rotate fully by integrating sections of stationary louvers along the wall area. This maintained the pergola’s aesthetic while accommodating the soffit constraints. We built out cam light tracks in two areas, attaching the pergola under the soffits and creating the necessary clearance for proper louver functionality.

Another challenge involved the HOA requirements, which mandated stone columns in the deck design. Stone columns, however, are incompatible with motorized screens, as they obstruct the screen’s ability to lower fully to the floor. StruXure Denver devised an innovative solution by installing pergola posts with 2-inch tracks for the screens. The lower three feet of each post were then built out to match the stone columns, preserving both the functionality of the screens and the visual integrity of the design.

The second-story deck structure added to the complexity, as it was not a typical wooden deck. Instead, it featured concrete-poured steel columns and beams. StruXure Denver coordinated with the general contractor to mount the pergola onto the deck and seamlessly integrate it with the existing structure.

SOLUTION:

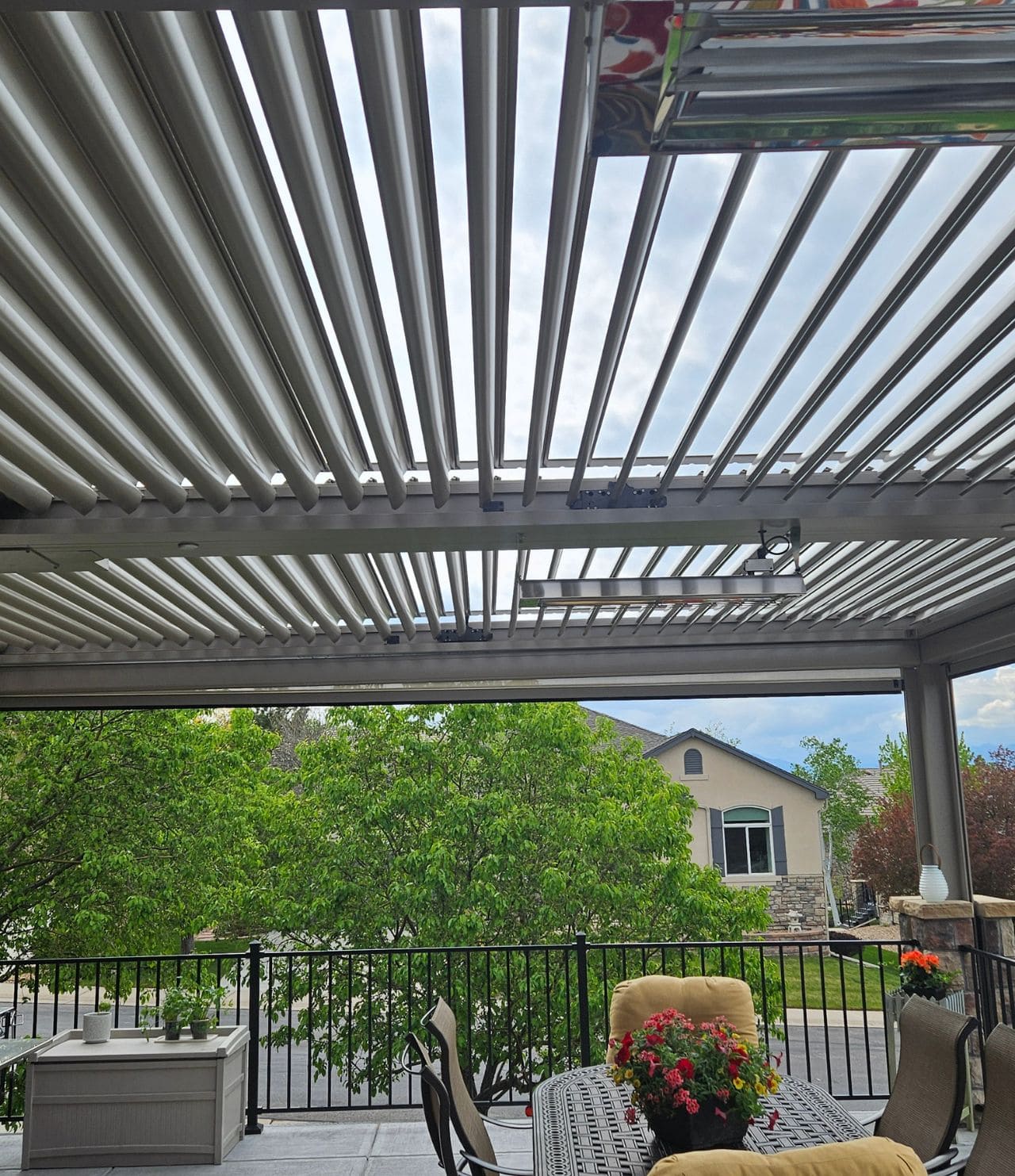

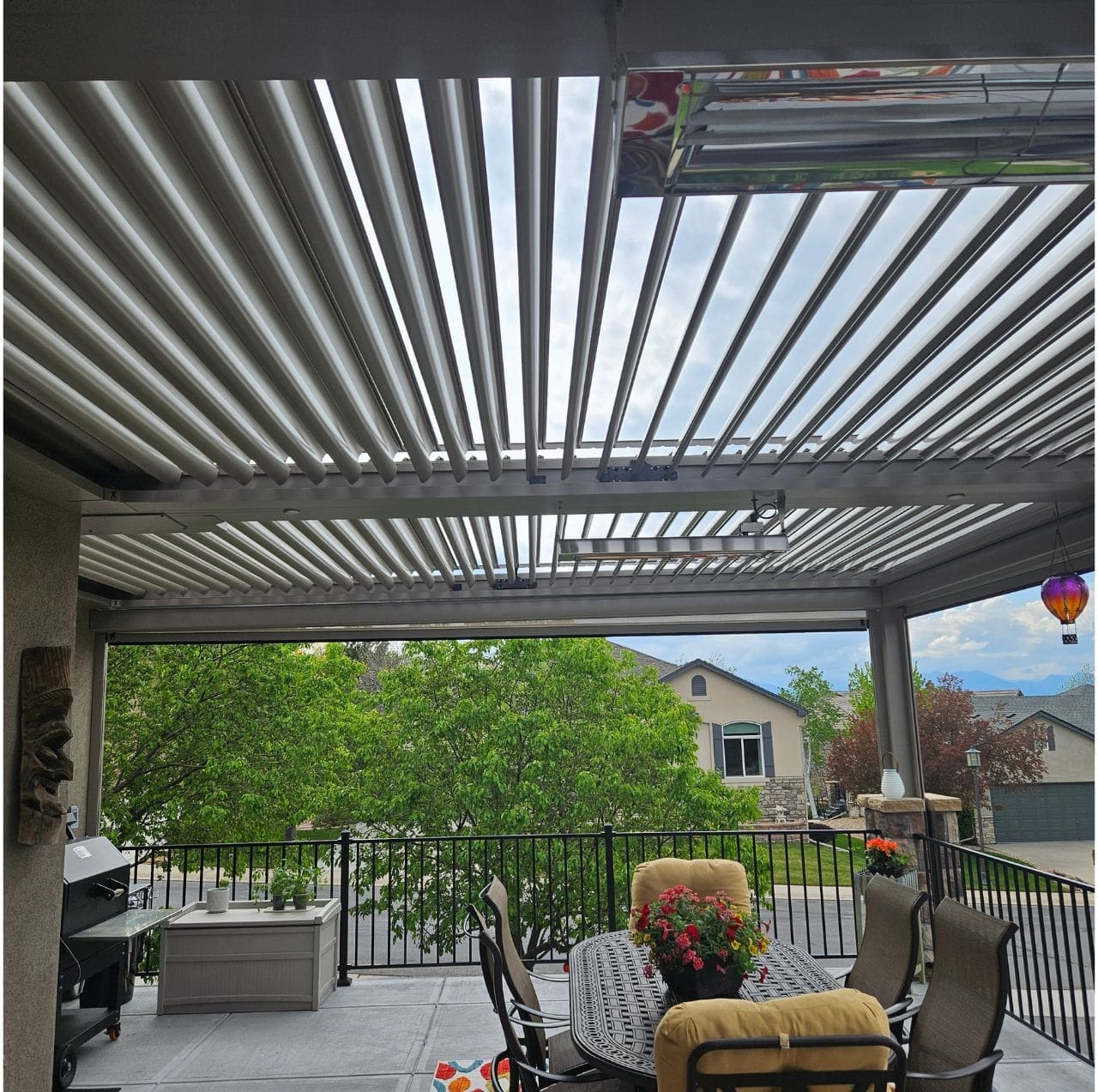

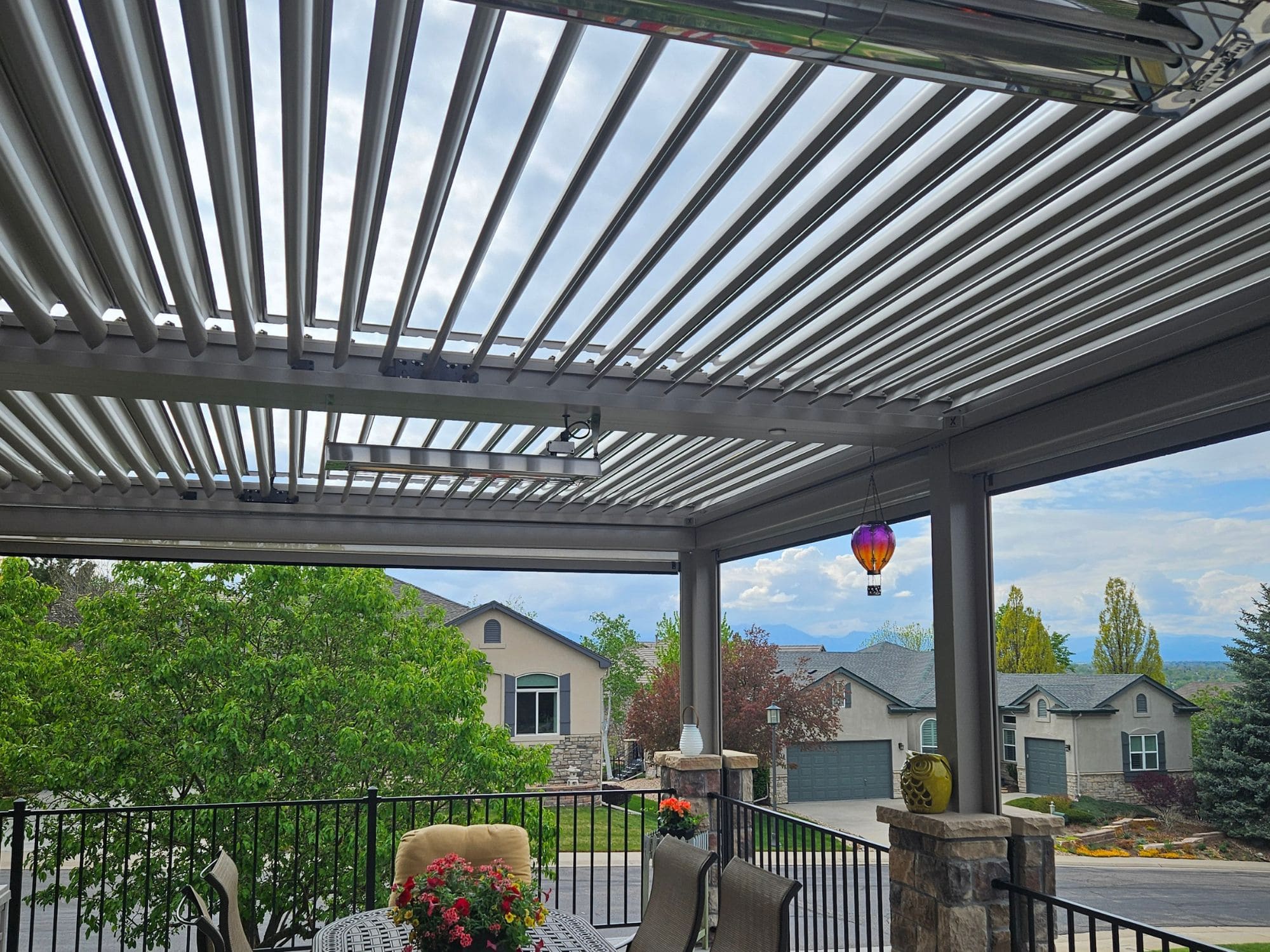

StruXure Denver installed a custom Pivot 6 pergola system designed to accommodate the unique conditions of the home while meeting the homeowners’ vision for a functional and stylish outdoor living area. The pergola featured three zones, all finished in adobe with white louvers, to match the home’s design.

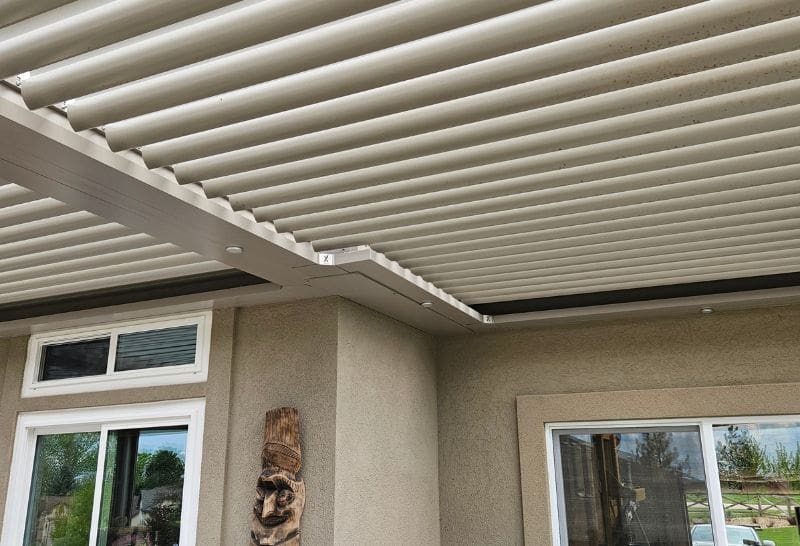

The louvers were customized to work with the low soffits and roofline, with stationary louvers included where clearance was insufficient for rotation. Motorized screens were installed with precision tracks and built-out posts to ensure compatibility with the stone column design. This allowed the screens to operate seamlessly while meeting HOA requirements.

The pergola had integrated heaters, remote-controlled lights, and fans, providing year-round comfort. Additional strip lighting is planned to enhance the space’s functionality and ambiance further. This custom pergola installation ensures a comfortable outdoor living space that complements the home while addressing all structural and aesthetic challenges.

StruXure Denver excels in designing custom pergola solutions that seamlessly blend style and functionality, customized to meet the unique needs of every homeowner. Our innovative designs create outdoor spaces that can be enjoyed year-round, enhancing comfort and aesthetics in any season. Contact StruXure Denver today to explore how we can transform your outdoor living space into a stunning retreat with a custom pergola installation.
